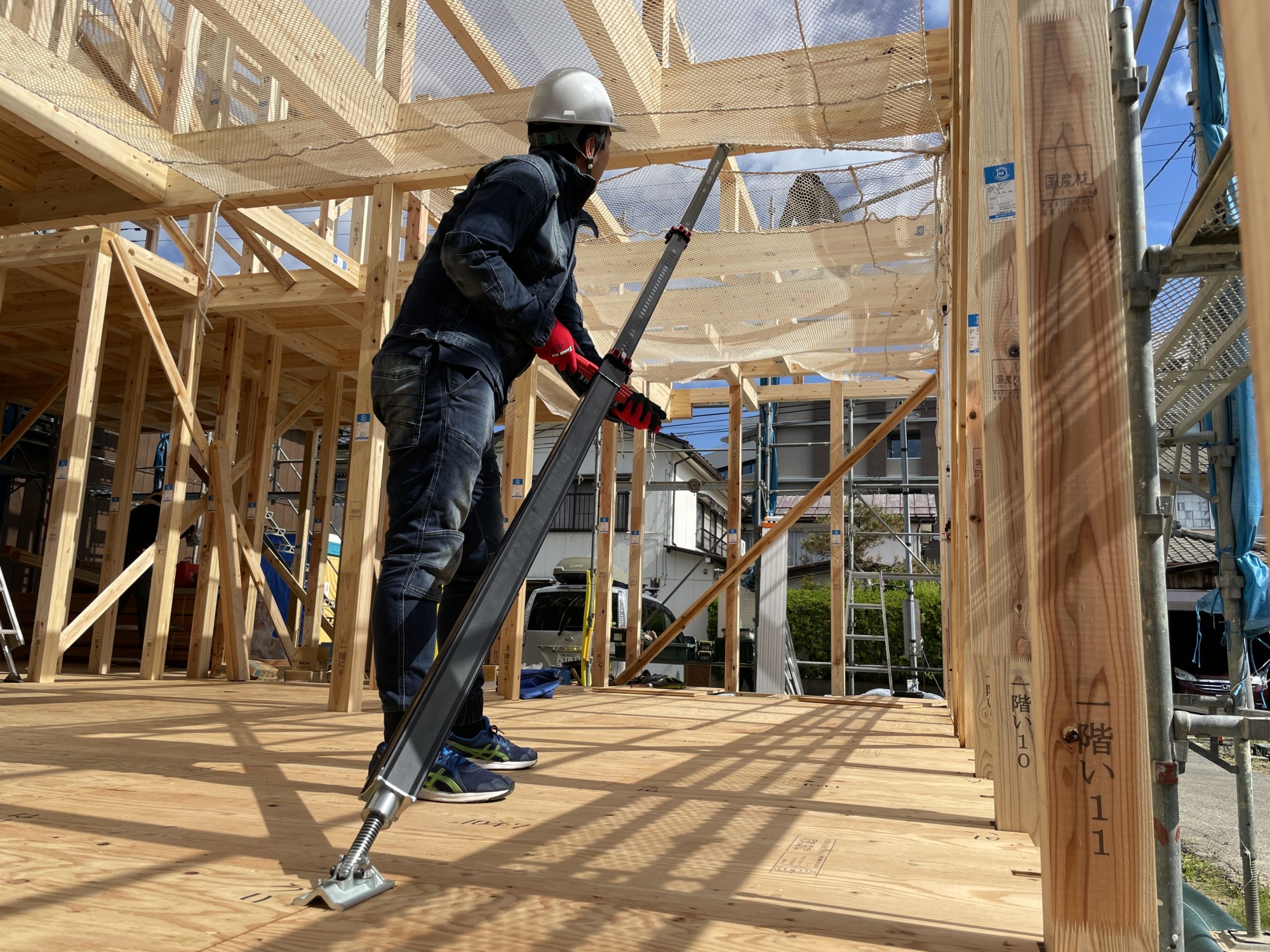

Capable of holding up to 400kg when extended to 4m. Effortlessly lifting heavy beams even at high elevations !
Collapsible to just 1.65m in length ! Making it easy to operate even in tight working spaces.
Featuring an Air Brake system to control the descent speed of Frame. Significantly reduces malfunction risks and noise levels !
Equipped with newly developed Multi Hold Plate at both ends. Ensures secure hold in any location, from intersecting columns to flat floors!
When the main unit bends out duriing operation, please stop use immediately as it may cause serious damage. (In this condition the main unit is subjected to a load of over 400kgf, exceeding its weight capacity)
Please use the lower Screw Shaft with an exposed length of 100mm or less. Exceeding 100mm may cause the main unit to become unstable, causing a significant danger.
Product Name : POWER ROD
Model Code : NK-4000YC
Max. Length : 4,000mm
Min. Length : 1,650mm
Weight : 7.6kg
Load capacity : 3.9kN (400kgf)
Product Name : Support Handle
Model Code : NK-YCHD
Weight : 0.5kg
A support handle to faciliate extension and retraction of the main unit.
